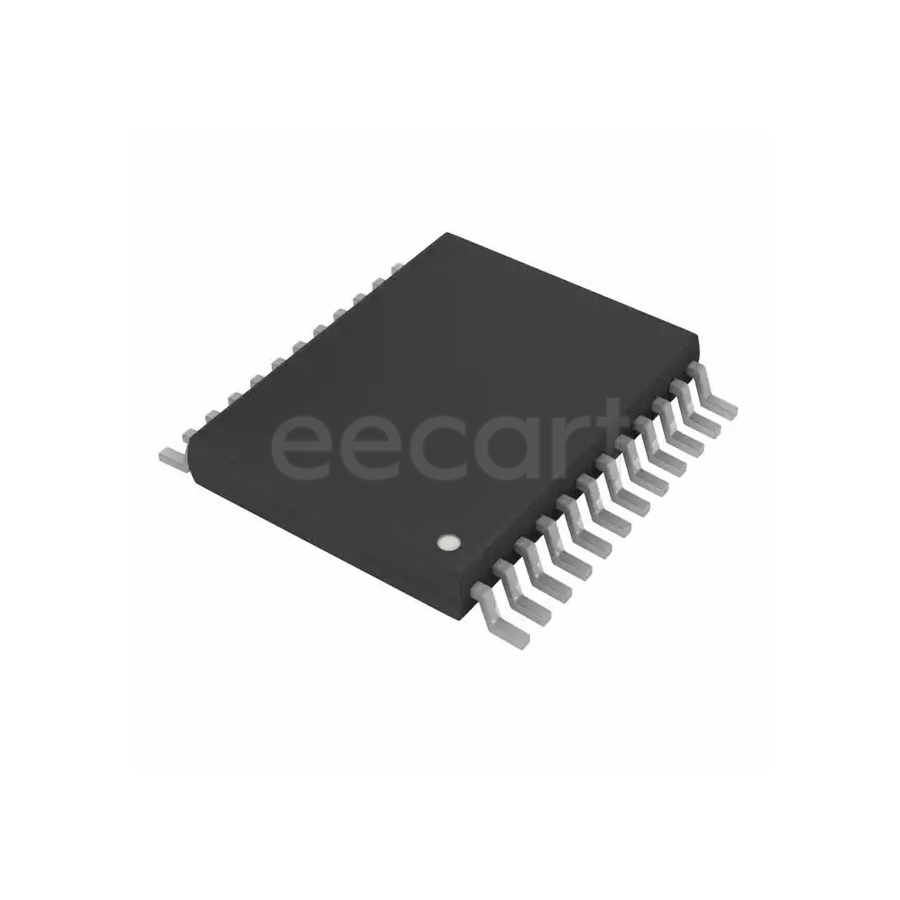

SN74CBTLV3383DGVR
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74CBTLV3383DGVR
Datasheet:
Description:
Digital Bus Switch ICs TVSOP-24 SMD/SMT 10 2.3 V to 3.6 V 27 Ω 6 ns
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 4.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Resistance | 27 Ω |
| Height | 1.2 mm |
| Packaging | Reel |
| Thickness | 1.05 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Output Current | 64 mA |
| Number of Circuits | 1 |
| Bandwidth | 200 MHz |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.3 V |
| Number of Channels | 10 |
| Number of Bits | 10 |
| Turn-On Delay Time | 6 ns |
| Quiescent Current | 10 µA |
| Propagation Delay | 6 ns |
| High Level Output Current | -128 mA |
| Low Level Output Current | 128 mA |
| Number of Inputs | 10 |
| Supply Type | Single |
| Throw Configuration | DPDT |
| Number of Outputs | 10 |
| Nominal Supply Current | 250 mA |
| Independent Circuits | 1 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Logic Family | |
| On Resistance (RON) | 27 Ω |
| Operating Supply Voltage | 2.3 V to 3.6 V |
Stock: 1063
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.29751 | $2.97510 |
| 25 | $0.26760 | $6.69000 |
| 50 | $0.24992 | $12.49600 |
| 100 | $0.23340 | $23.34000 |
| 300 | $0.22107 | $66.32100 |
| 500 | $0.20939 | $104.69500 |
| 1000 | $0.19834 | $198.34000 |
| 3000 | $0.19217 | $576.51000 |
| 5000 | $0.18619 | $930.95000 |
| 10000 | $0.18039 | $1803.90000 |
